Overview - Bumper Cover, Sedan From My 2017

WARNING: This page is about a different variant/trim than selected.

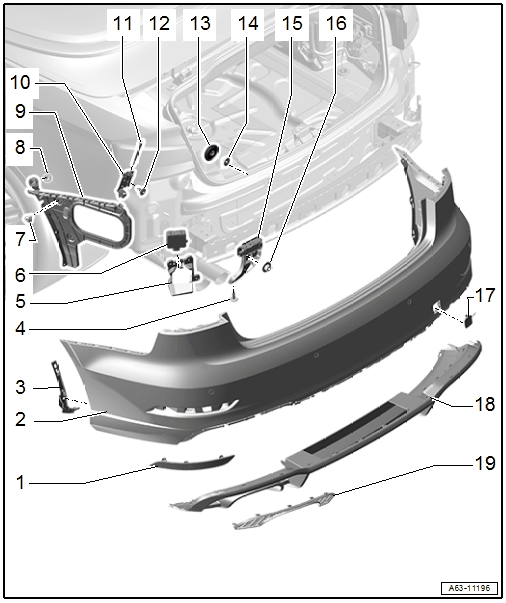

Fig 1: Exploded View Of Bumper Cover, Sedan From MY 2017

Courtesy of AUDI OF AMERICA, LLC

Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING .
Rear Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Cover
Bolt
- 2 Nm
Mount
- for lane change assistance control module
Lane Change Assistance Control Module
- Equipped on some models
- Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
Bolt
- Quantity: 3
- Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
Nut
- Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
Side Mount
- For the bumper cover.
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, SEDAN .
Upper Guide Piece
- For securing the bumper cover
- Removing and Installing. Refer to UPPER GUIDE PIECE, REMOVING AND INSTALLING .
Locking Mechanism
- For attaching the rear bumper cover to the upper mount
Bolt
- Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
Cover
- Quantity: 2
Nut
- Quantity: 4
- 5 Nm
Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Nut
- 2 Nm
- Quantity: 2
Cover
- For the towing eye
Bumper Cover Lower Section
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
Trim
- Only S line version
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION TRIM, REMOVING AND INSTALLING, S LINE FROM MY 2017 .
