Overview - Bumper Cover, S Line And S3 Sedan Through My 2016

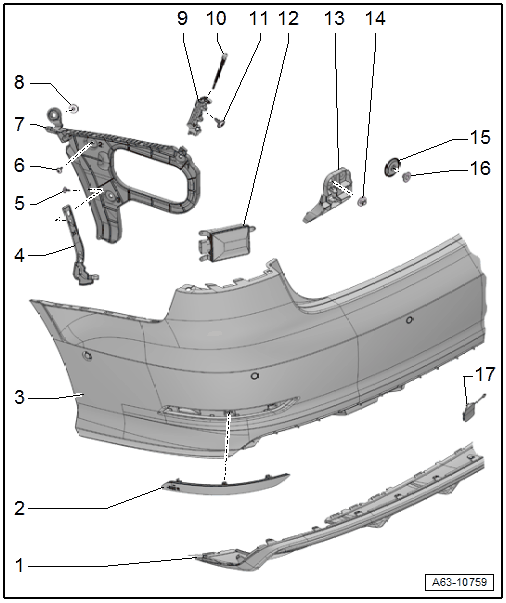

Fig 1: Exploded View Of Bumper Cover, S Line & S3 Sedan Through MY 2016

Courtesy of AUDI OF AMERICA, LLC

1. Bumper Cover Lower Section
   • There are different versions.
   • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
2. Rear Reflector
   • Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING .
3. Rear Bumper Cover
   • Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
4. Cover
5. Bolt
   • 2 Nm
6. Bolt
   • Quantity: 3
   • Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
7. Side Mount
   • For the bumper cover.
   • Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, SEDAN .
8. Nut
   • Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
9. Upper Guide Piece
   • For securing the bumper cover
   • Removing and Installing. Refer to UPPER GUIDE PIECE, REMOVING AND INSTALLING .
10. Locking Mechanism
    • For attaching the rear bumper cover to the upper mount
11. Bolt
    • Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
12. Lane Change Assistance Control Module
    • Equipped on some models
    • Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
13. Mount
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
14. Nut
    • 2 Nm
    • Quantity: 2
15. Cover
    • Quantity: 4
16. Nut
    • 5 Nm
    • Quantity: 4
17. Cover
    • For the towing eye
