Overview - Bumper Cover, A3 S Line, S3 And SPORTBACK Through My 2016

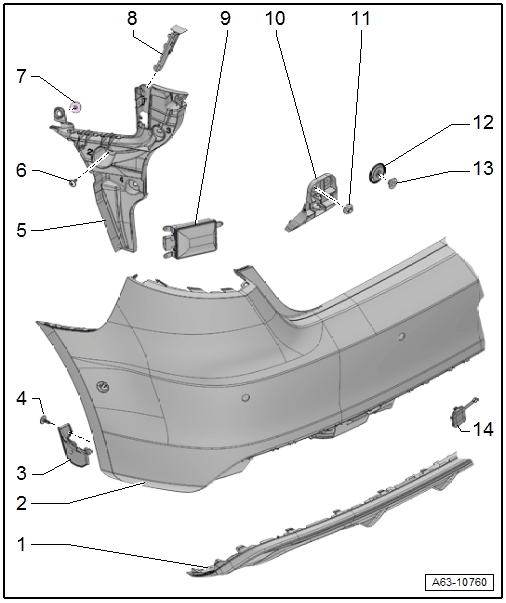

Fig 1: Exploded View Of Bumper Cover, A3 S Line, S3 & Sportback Through MY 2016

Courtesy of AUDI OF AMERICA, LLC

1. Bumper Cover Lower Section
   • There are different versions.
   • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
2. Rear Bumper Cover
   • Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
3. Cover
4. Bolt
   • 2 Nm
5. Side Mount
   • For the bumper cover.
   • Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A3 AND SPORTBACK .
6. Bolt
   • Quantity: 4
   • Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
7. Nut
   • Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
8. Locking Mechanism
   • For attaching the rear bumper cover to the upper mount
9. Lane Change Assistance Control Module
   • Equipped on some models
   • Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
10. Mount
    • For the bumper cover
    • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
11. Nut
    • 2 Nm
    • Quantity: 2
12. Cover
    • Quantity: 4
13. Nut
    • 5 Nm
    • Quantity: 4
14. Cover
    • For the towing eye
