Overview - Bumper Cover, A3 And SPORTBACK Through My 2016: Notes

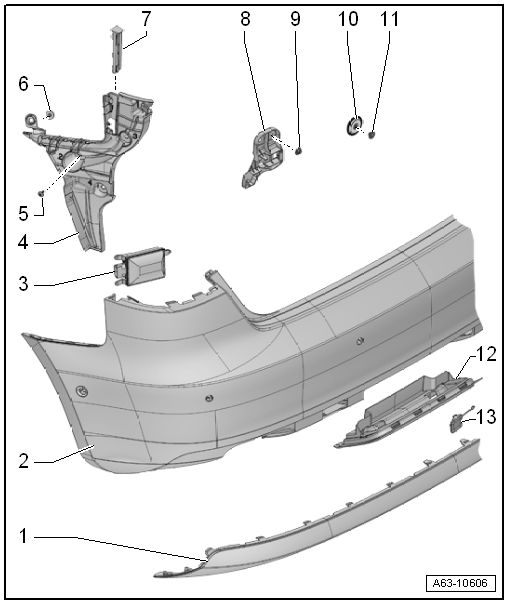

Fig 1: Exploded View Of Bumper Cover, A3 & Sportback Through MY 2016

Courtesy of AUDI OF AMERICA, LLC

1. Bumper Cover Lower Section
   • There are different versions.
   • Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
2. Rear Bumper Cover
   • Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
3. Lane Change Assistance Control Module
   • Equipped on some models
   • Overview. Refer to OVERVIEW - LANE CHANGE ASSISTANCE .
4. Side Mount
   • For the bumper cover.
   • Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A3 AND SPORTBACK .
5. Bolt
   • Quantity: 4
   • Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
6. Nut
   • Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
7. Locking Mechanism
   • For attaching the rear bumper cover to the upper mount
8. Mount
   • For the bumper cover
   • Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
9. Nut
   • 2 Nm
   • Quantity: 2
10. Cover
    • Quantity: 4
11. Nut
    • 5 Nm
    • Quantity: 4
12. Cover
    • For the trailer hitch
    • Equipped on some models
13. Cover
    • For the towing eye
