Overview - Bumper Cover, A3 And SPORTBACK From My 2017

WARNING: This page is about a different variant/trim than selected.

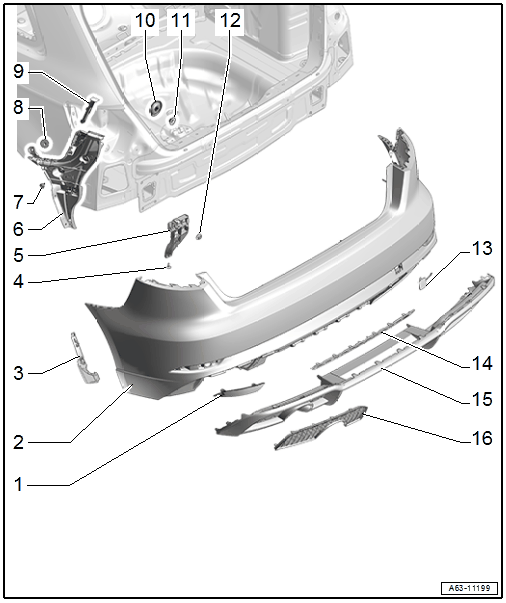

Fig 1: Exploded View Of Bumper Cover Components Location (A3 & Sportback From MY 2017)

Courtesy of AUDI OF AMERICA, LLC

Rear Reflector
- Removing and Installing. Refer to REFLECTOR, REMOVING AND INSTALLING .
Rear Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Cover
Bolt
- 2 Nm
Mount
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
Side Mount
- For the bumper cover
- Removing and Installing. Refer to SIDE BUMPER COVER MOUNT, REMOVING AND INSTALLING, A3 AND SPORTBACK .
Bolt
- Quantity: 4
- Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
Nut
- Tightening sequence. Refer to BUMPER COVER SIDE MOUNT - TIGHTENING SPECIFICATION AND SEQUENCE .
Locking Mechanism
- For attaching the rear bumper cover to the upper mount
Cover
- Quantity: 4
Nut
- 5 Nm
- Quantity: 4
Nut
- 2 Nm
- Quantity: 2
Cover
- For the towing eye
Trim
- Only S line version
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, A3 S LINE AND SPORTBACK S LINE FROM MY 2017 .
Bumper Cover Lower Section
- There are different versions.
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
Trim
- Only S line version
- For the bumper cover lower section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION TRIM, REMOVING AND INSTALLING, S LINE FROM MY 2017 .
