Impact Member, Removing And Installing, Vehicles With Power Trailer Hitch: Removing

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

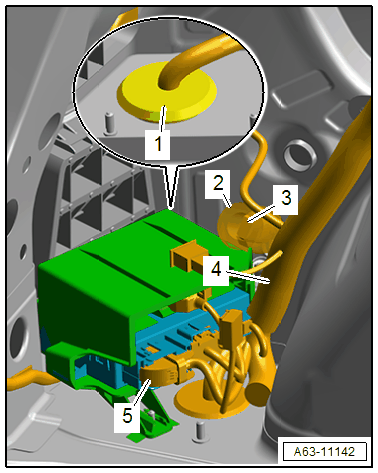

-- A3 & Sportback:  disconnect the connector -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Push back the foam protection -2- and disconnect the connector -3-.

-- Push through the grommet -1- and guide out the wiring harness -4-.

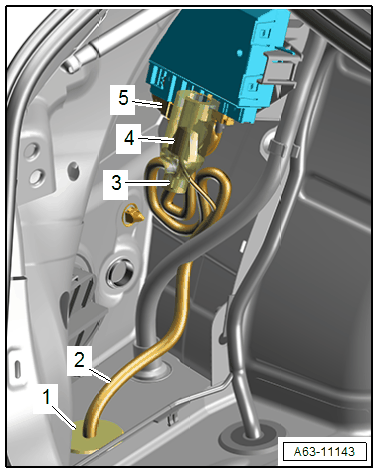

-- Sedan: disconnect the connector -5-.

Courtesy of AUDI OF AMERICA, LLC

-- Push back the foam protection -3- and disconnect the connector -4-.

-- Push through the grommet -1- and guide out the wiring harness -2-.

-- Release the trailer hitch with the button and guide out.

Courtesy of AUDI OF AMERICA, LLC

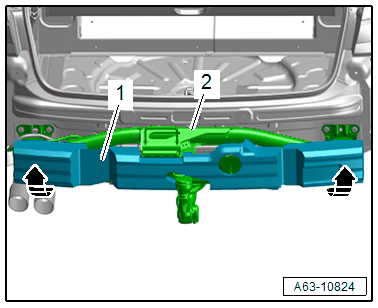

-- Remove the molded foam part -1- from the impact member -2- by tilting upward -arrows-.

-- Free up the wiring harness.

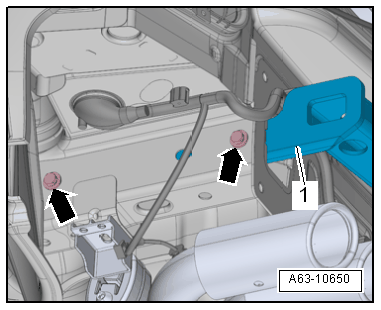

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove The Impact Member -1- With A Second Technician.
