Impact Member, Removing And Installing, Vehicles With Manual Trailer Hitch: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
A3 & Sportback
-- Vehicles With A Gasoline Engine: Remove The EVAP Canister. Refer to EVAP CANISTER, REMOVING AND INSTALLING [CNTC, CNSB] .

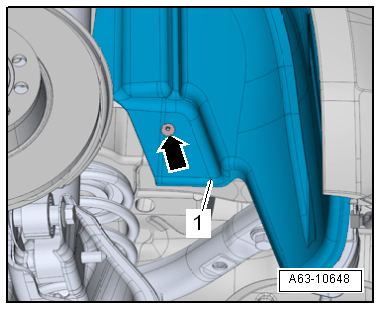

-- Remove the bolt -arrow- and press the wheel housing liner -1- slightly to the side.
Continuation For All

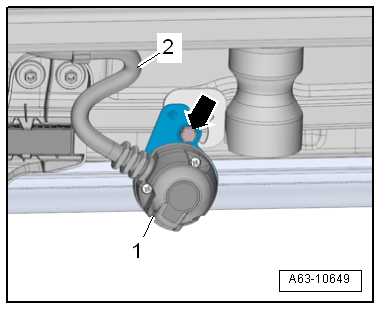

-- Free up the wiring harness -2-.
-- Loosen the bolt connection -arrow- on the connector mount -1-.
-- Remove the bolts -arrows-.
-- Remove The Impact Member -1- With A Second Technician.
