Reflector, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

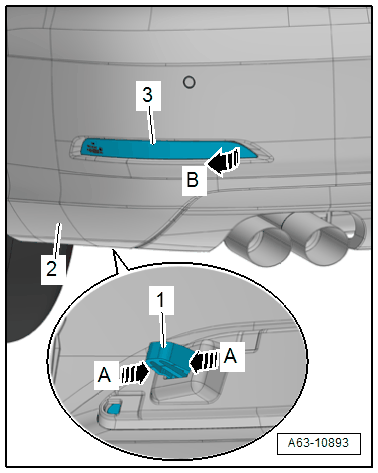

-- Release the catches -1- -A arrows-.

GWWA63-10893Courtesy of AUDI OF AMERICA, LLC

-- Disengage the reflector -3- in the direction of the arrow -B- out of the bumper cover -2-.
