Wheel Housing Extension, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

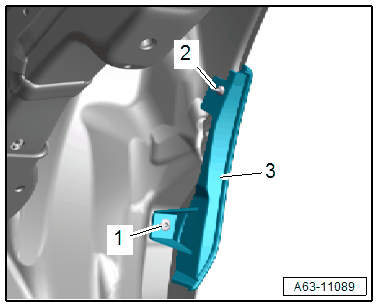

Sportback:
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolt -1-.
-- Remove the expanding rivet -2-.
-- Remove the wheel housing extension -3-.

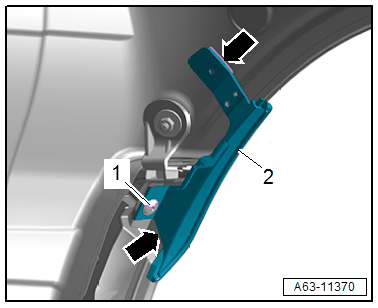

Sedan:
 Courtesy of AUDI OF AMERICA, LLC
|
-- Remove the bolt -1-.
-- Carefully warm the wheel housing extension -2- using the :VAG1416
.
-- Loosen the trim panels -arrows- and remove the wheel housing extension.
