Upper Guide Piece, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

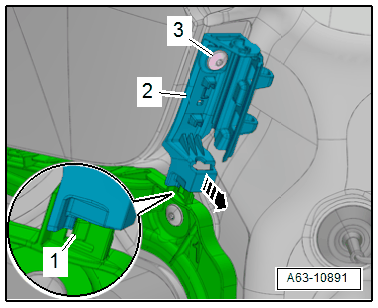

-- Remove the bolt -3-.
-- Release the catches -1- and remove the upper guide piece -2- and remove rearward -arrow-.
