Tail Pipe Trim Molding, Removing And Installing, RS3: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .

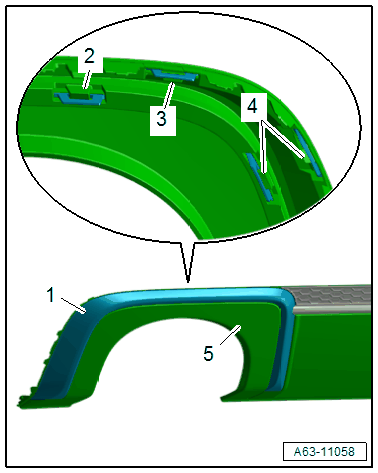

-- Release the catches -2, 3 and 4- and remove the trim molding -1- from the bumper cover lower section -5-.

GWWA63-11058Courtesy of AUDI OF AMERICA, LLC
