Bumper Cover Trim, Removing And Installing, A3 S Line And SPORTBACK S Line From My 2017: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the lower section of the bumper cover. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .

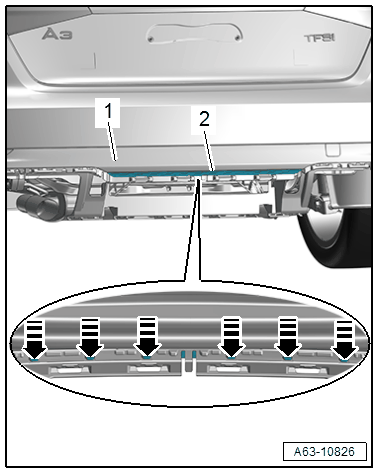

-- Release the retainers -arrows- and remove the trim -2- from the bumper cover -1-.

GWWA63-10826Courtesy of AUDI OF AMERICA, LLC
