Bumper Cover Lower Section Trim Molding, Removing And Installing, RS3: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the tail pipe trim molding. Refer to TAIL PIPE TRIM MOLDING, REMOVING AND INSTALLING, RS3 .

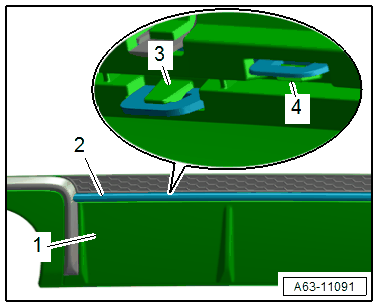

-- Release the catches -3 and 4- and remove the trim molding -2- from the bumper cover lower section -1-.

GWWA63-11091Courtesy of AUDI OF AMERICA, LLC
