Overview - Bumper Cover, S3 Sedan Through My 2016

WARNING: This page is about a different variant/trim than selected.

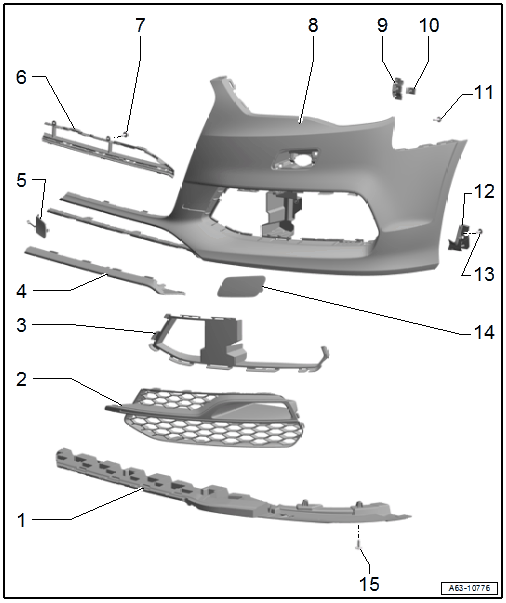

Fig 1: Exploded View Of Bumper Cover (S3 Sedan Through MY 2016)

Courtesy of AUDI OF AMERICA, LLC

Bumper Cover End Plate
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, A3 THROUGH MY 2016 .
Air Intake Grille
- There are different versions.
- Removing and Installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, A3 AND S3 WITH SIDE AUXILIARY RADIATOR .
Cover
- For the air intake grille
Spoiler Lower Section
- Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, S3 SEDAN .
Towing Eye Cover
Lower Reinforcement Brace
- Removing and Installing. Refer to LOWER REINFORCEMENT BRACE, REMOVING AND INSTALLING, S3 SEDAN THROUGH MY 2016 .
Bolt
- 2 Nm
- Quantity: 3
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Mount
- For metal nut
Metal Nut
Bolt
- 4 Nm
Intermediate Piece
- For securing the wheel housing liner
Bolt
- 2 Nm
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Bolt
- 2.5 Nm
