Overview - Bumper Cover, S Line And S3 From My 2017

WARNING: This page is about a different variant/trim than selected.

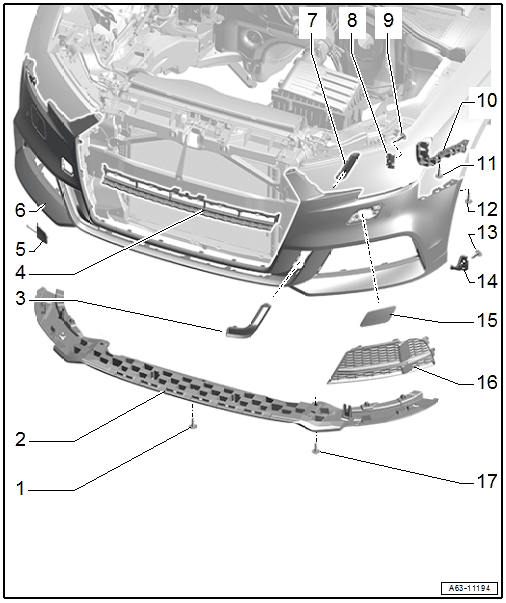

Fig 1: Exploded View Of Bumper Cover (S Line And S3 From MY 2017)

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2.5 Nm
Bumper Cover End Plate
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, A3 FROM MY 2017, RS3 SEDAN .
Trim
- Removing and Installing. Refer to TRIM, REMOVING AND INSTALLING, A3 S LINE FROM MY 2017 .
Center Air Intake Grille
- Removing and Installing. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A3 S LINE FROM MY 2017 .
Towing Eye Cover
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Cap
- For the trim
Mount
Bolt
- 4 Nm
Mount
- For the bumper cover
- To secure the headlamp
- Overview. Refer to OVERVIEW - FENDER .
Bolt
- Tightening specification. Refer to OVERVIEW - FENDER .
Bolt
- 4.5 Nm
Bolt
- 2 Nm
Intermediate Piece
- For securing the wheel housing liner
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Air Intake Grille
- Removing and Installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .
Bolt
- 4.5 Nm
- Quantity: 3
