Overview - Bumper Cover, RS3 SPORTBACK

WARNING: This page is about a different variant/trim than selected.

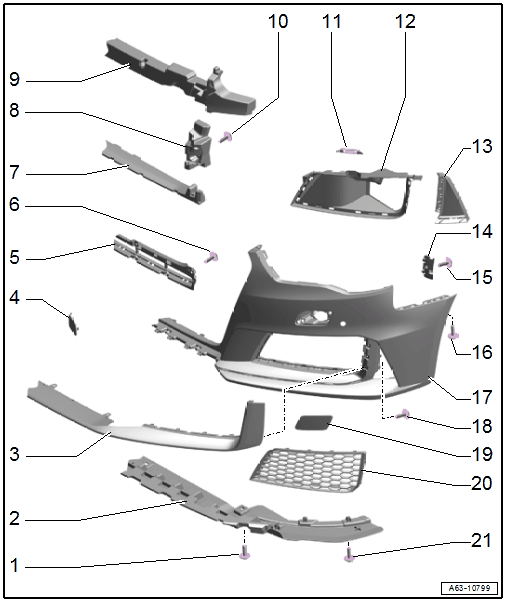

Fig 1: Exploded View Of Bumper Cover (RS3)

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 2 Nm
- Quantity: 3
Bumper Cover End Plate
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS3 SPORTBACK .
Spoiler Lower Section
- Removing and Installing. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, RS3 SPORTBACK .
Towing Eye Cover
Lower Reinforcement Brace
- Removing and Installing. Refer to LOWER REINFORCEMENT BRACE, REMOVING AND INSTALLING, RS3 SPORTBACK .
Bolt
- 2 Nm
- Quantity: 8
Lower Molded Foam Part
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS3 SPORTBACK .
Side Molded Foam Piece
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, RS3 SPORTBACK .
Molded Foam Part
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING, RS3 .
Bolt
- 2 Nm
Clip
- Quantity: 6
Cover
- For the air intake grille
- Removing and Installing. Refer to AIR INTAKE GRILLE TRIM, REMOVING AND INSTALLING, RS3 SPORTBACK .
Trim
- For the side air intake
- Removing and Installing. Refer to SIDE AIR INTAKE TRIM, REMOVING AND INSTALLING, RS3 SPORTBACK .
Thread Mount
- For the bolt
Bolt
- 4 Nm
Bolt
- 2 Nm
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
Air Intake Grille
- There are different versions.
- Removing and Installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, RS3 SPORTBACK .
Bolt
- 2 Nm
- Quantity: 2
