Overview - Bumper Cover, A3 Through My 2016

WARNING: This page is about a different variant/trim than selected.

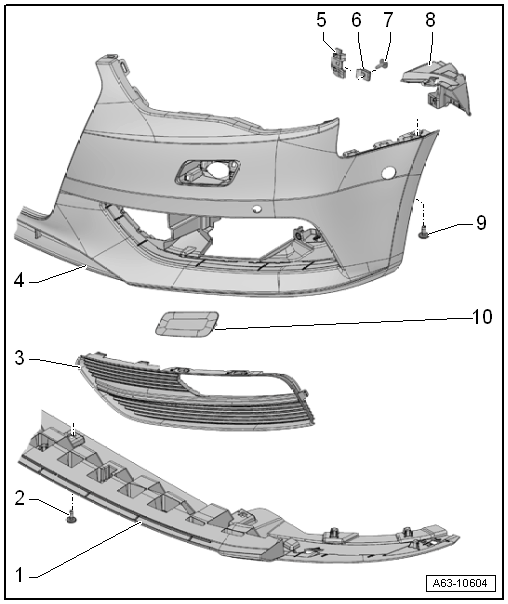

Fig 1: Exploded View Of Bumper Cover (A3 Through MY 2016)

Courtesy of AUDI OF AMERICA, LLC

Bumper Cover End Plate
- Removing and Installing. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, A3 THROUGH MY 2016 .
Bolt
- 2.5 Nm
Air Intake Grille
- There are different versions.
- Removing and Installing. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, A3 WITHOUT SIDE AUXILIARY RADIATOR, THROUGH MY 2016 .
Bumper Cover
- Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Mount
- For metal nut
Metal Nut
Bolt
- 4 Nm
Mount
- for fog lamp
- Equipped on some models
- Removing and Installing. Refer to FOG LAMP MOUNT, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
Washer Nozzle Cover
- For the headlamp washer system
- Removing and Installing. Refer to HEADLAMP WASHER SYSTEM WASHER NOZZLE COVER, REMOVING AND INSTALLING .
