Bumper Cover, Removing And Installing, A3 Without Side Auxiliary Radiator: Removing

-- Push in the front wheel and loosen the wheel housing liner in the area of the front bumper cover.

-- Place a drip tray under the separating point for the washer fluid hose.

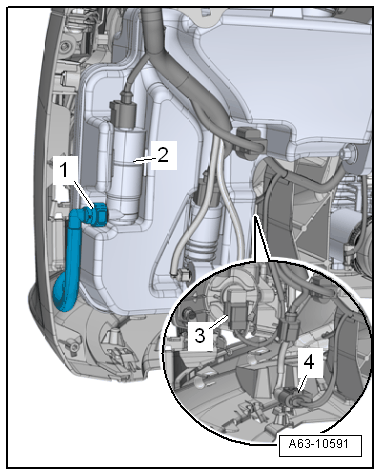

-- If necessary, remove the washer fluid hose -1- from the headlamp washer system pump -2- by pressing the release button.

Courtesy of AUDI OF AMERICA, LLC

-- Seal the hose coupling with clean plugs from the :VAS6122  .

-- If necessary, disconnect the connector -3- from the fog lamp.

-- Disconnect the central connector -4-.

-- Push the loosened wheel housing liner aside and remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage The Side Wall -3- From The Front Side Panel -Arrow- And Remove The Bumper Cover Forward With A Second Technician.

-- e-tron: disconnect the connector on the signature lighting.
