Bumper Cover, Removing And Installing, A3 With Side Auxiliary Radiator: Removing

-- Left: Push in the front wheel and loosen the wheel housing liner in the area of the front bumper cover.

-- Ring: loosen the lower front wheel housing liner and push to the side, Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Place a drip tray under the separating point for the washer fluid hose.

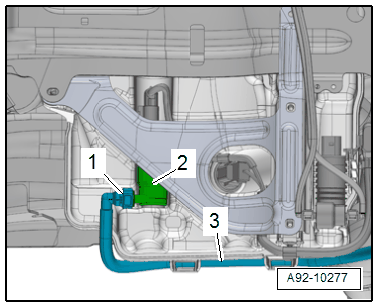

-- Remove the water drain hose -1- from the headlamp washer pump -2- to do this push the release button.

Courtesy of AUDI OF AMERICA, LLC

-- Seal off the hose coupling with clean plugs from the :VAS6122  .

-- Free up the washer fluid hose -3-.

-- Disconnect the central connector -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the loosened wheel housing liner aside and remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Disengage The Side Wall -3- From The Front Side Panel -Arrow- And Remove The Bumper Cover Forward With A Second Technician.
