Side And Forward/Back Adjustment: Procedure

WARNING: This page is about a different variant/trim than selected.

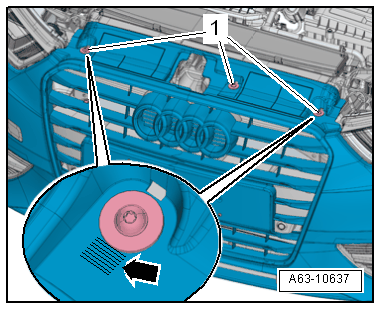

-- Loosen the bolts -1-.

GWWA63-10637Courtesy of AUDI OF AMERICA, LLC

-- Adjust the front bumper cover lengthwise according to the markings -arrow-.

-- Tighten the bolts.

-- Check the gap dimension for evenness, and repeat the adjustment if necessary.
