Bumper Cover Mount, Removing And Installing, RS3: Removing
WARNING: This page is about a different variant/trim than selected.
-- Sportback: remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING, RS3 SPORTBACK .
-- Sedan: remove the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, SEDAN .

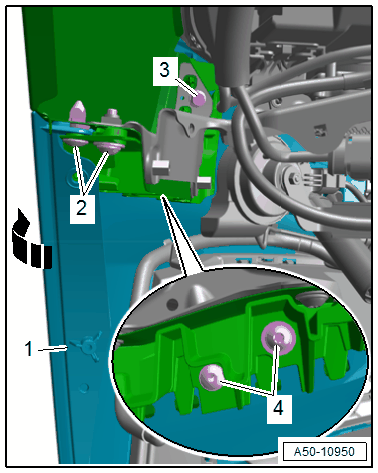

-- Remove the bolts -2, 3 and 4-.
-- Disengage the side bolster -1- from the front side panel -arrow-.

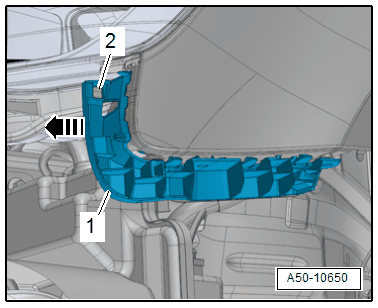

-- Remove the mount -1- forward -arrow-, while doing so do not damage the guide -2- for the headlight.
