Side Air Intake Trim, Removing And Installing, RS3 Sedan: Installing
WARNING: This page is about a different variant/trim than selected.
Install In Reverse Order Of Removal and Note The Following:
-- Clean the adhesive surface on the bumper cover with Cleaning Solution :D 009 401 04 .
- The bumper cover and the side air intake trim must be room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Using the applicator -3-, apply the Bonding Agent :D355 205 A2 -item 1- evenly in one stroke on the adhesive surface -2-.
-- Clean the bonding agent treated area with a clean disposable paper towel and let dry for 10 minutes.
- If the Bonding Agent :D 355 205 A2 dries longer than 3 hours, then it must be primed again.

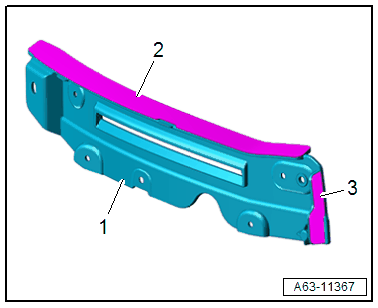

-- Remove the protective films -2 and 3- and press the mount -1- on along the entire length of the bumper cover.
- Vehicle resting time is at least 2 hours at room temperature.
-- Slide the clips all the way onto the tabs while making sure the tabs do not break off.
