Molded Foam Part, Removing And Installing, RS3: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING, RS3 .

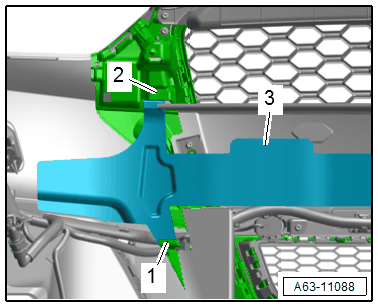

-- Remove the molded foam part -3- from the brackets -1 and 2-.

GWWA63-11088Courtesy of AUDI OF AMERICA, LLC
