Molded Foam Part, Removing And Installing, A3: Removing

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

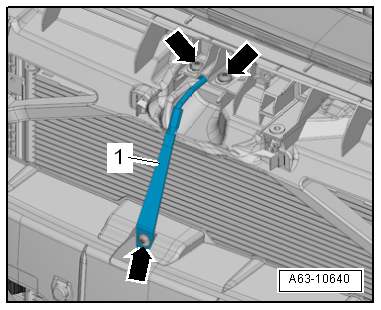

-- On vehicles with a high-voltage system, remove the bolts -arrows- and the retaining bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, cut through the cable tie on the bracket for the pedestrian protection crash sensor.

-- Release catches -1- -arrow- and disengage the molded foam piece -2- from the impact member.

Courtesy of AUDI OF AMERICA, LLC

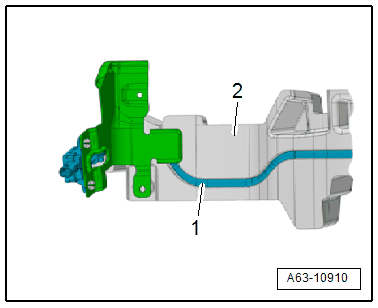

-- Vehicles through MY 2016: if equipped, free up the vacuum line -1- from the molded foam part -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the molded foam part.
