Lower Reinforcement Brace, Removing And Installing, S3 Sedan Through My 2016: Removing
WARNING: This page is about a different variant/trim than selected.

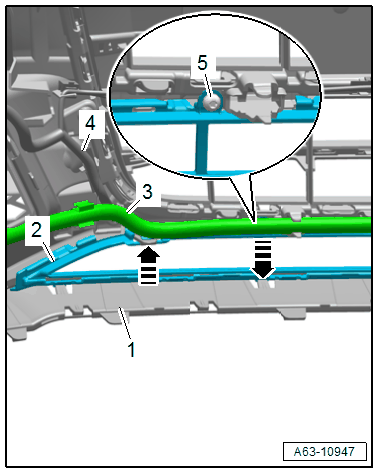

-- Remove the spoiler lower section. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, S3 SEDAN .
-- Free up the washer fluid hose -3- and wiring harness -4-.
-- Remove the bolts -5-.
-- Release the catches -arrows- and remove the reinforcement brace -2- rearward from the bumper cover -1-.
