Lower Reinforcement Brace, Removing And Installing, RS3 Sedan: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper. Refer to OVERVIEW - BUMPER COVER .
-- Remove the front bumper cover end plate. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, A3 FROM MY 2017, RS3 SEDAN .

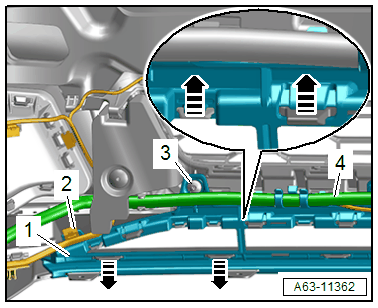

-- Free up the washer fluid hose -4- and wiring harness -2-.
-- Remove the bolts -3-.
-- Release the catches -arrows- and remove the reinforcement brace -1- rearward from the bumper cover.
