Lower Reinforcement Brace, Removing And Installing, RS3 SPORTBACK: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front bumper. Refer to OVERVIEW - BUMPER COVER .

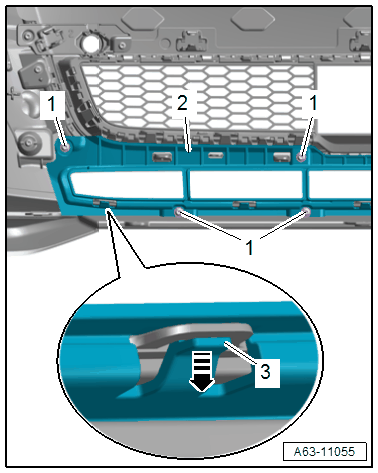

-- Remove the bolts -1-.

GWWA63-11055Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -3- -arrows- and remove the reinforcement brace -2- toward the rear off of the bumper cover.
