Front Bumper Cover End Plate, Removing And Installing, A3 Through My 2016: Removing

-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Loosen the wheel housing liner in at the front and move it to the side.

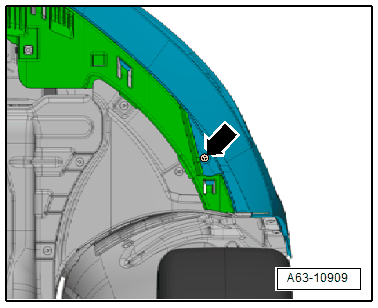

-- Free up the central connector -arrow- from the retainer.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow-, if necessary.

Courtesy of AUDI OF AMERICA, LLC

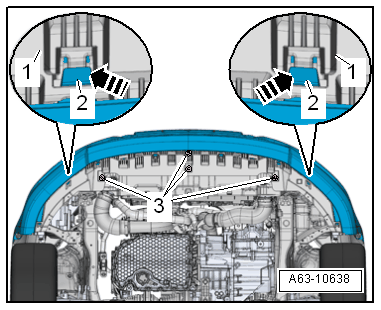

-- Remove the bolts -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -2- on the end plate -1- -arrow-.

-- Pull the front bumper cover end plate toward the rear in the direction of travel.

-- If necessary, free up the washer fluid hose for the headlamp washer system.
