Front Bumper Cover End Plate, Removing And Installing, A3 From My 2017, RS3 Sedan: Removing

-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- A3:  Loosen the wheel housing liner in at the front and move it to the side.

-- RS3 sedan:  Remove the wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING, SEDAN .

-- Disconnect the connector -3- and free up the central connector on the retainer.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the left and right washer fluid hose -1- and wiring harness -2-.

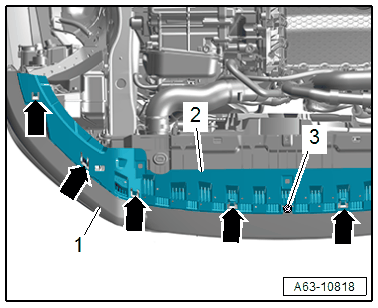

-- Remove the bolt -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -arrows- and at the same time remove the end panel -2- from the front bumper cover -1- in the direction of travel toward the rear.

RS3 SEDAN:

Courtesy of AUDI OF AMERICA, LLC

-- Carefully remove the clips -arrows- carefully from the guide tab with a screwdriver.

-- Remove the lower molded foam part -2- from the bumper cover end plate.
