Fog Lamp Mount, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the air intake grille. Refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, A3 WITHOUT SIDE AUXILIARY RADIATOR, THROUGH MY 2016 .
-- Remove the fog lamp. Refer to FOG LAMP, REMOVING AND INSTALLING .

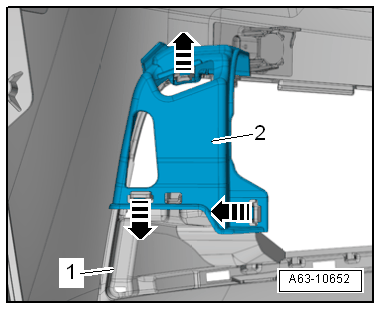

-- Release the retainers -arrows-.
-- Remove the mount -2- from the bumper cover -1-.
