Cover Strip, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

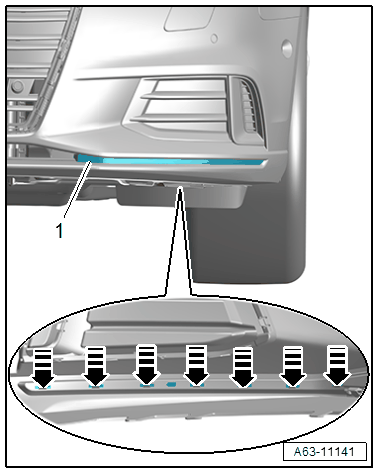

-- Loosen the wheel housing liner in at the front and move it to the side. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Release the retainers -arrows-.

GWWA63-11141Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover strip -1- toward the front.

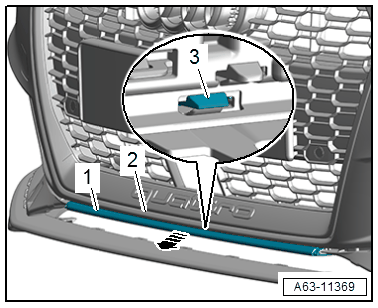

-- Remove the left and right spoiler lower section. Refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, RS3 SEDAN .

-- Release the retainers -3-.

GWWA63-11369Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover strip -1- from the bumper cover -arrow-.
