Center Air Intake Grille, Removing And Installing, A3 S Line From My 2017: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper cover end plate. Refer to FRONT BUMPER COVER END PLATE, REMOVING AND INSTALLING, A3 FROM MY 2017, RS3 SEDAN .
-- If installed, free up the washer fluid hose for the headlamp washer system.

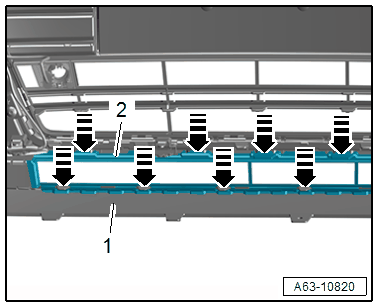

-- Release the retainers -arrows-.
-- Remove the air intake grille -2- from the bumper cover -1-.
