Air Intake Grille, Removing And Installing, A3 Without Side Auxiliary Radiator, Through My 2016: Removing
WARNING: This page is about a different variant/trim than selected.

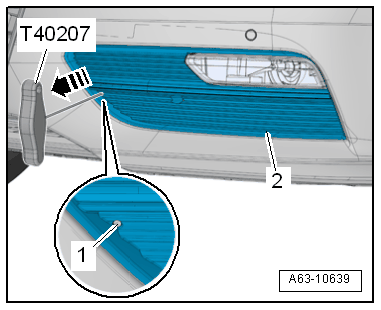

-- Place the Hook Tool :T40207 in the opening -1- and remove the lower air intake grille -2- from the bumper cover -arrow-.
NOTE:
For vehicles without fog lights the front bumper must be removed. Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
