Air Intake Grille, Removing And Installing, A3 And S3 With Side Auxiliary Radiator: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

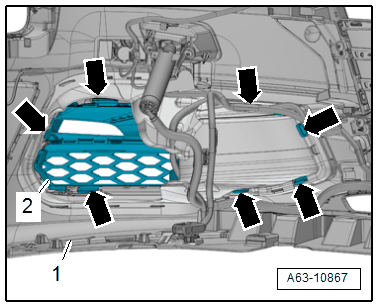

-- Release the retainers -arrows- and remove the air intake grille -2- from the bumper cover -1-.
