Air Intake Grille, Removing And Installing, A3 And S3 With Side Auxiliary Radiator: Installing

Install In Reverse Order Of Removal and Note The Following:

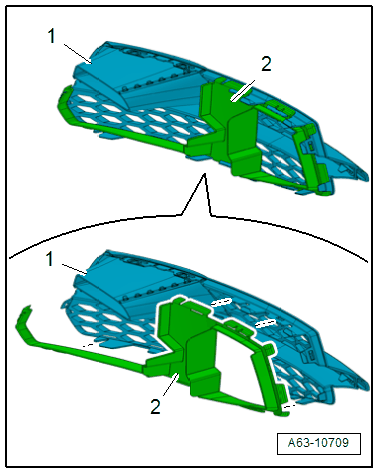

-- Before installing place the cover -2- on the air intake grille -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Place the air intake grille on the bumper cover and push it on. While doing so, the catches must fully engage in the bumper cover.
