Air Intake Grille Trim, Removing And Installing, RS3 Sedan: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

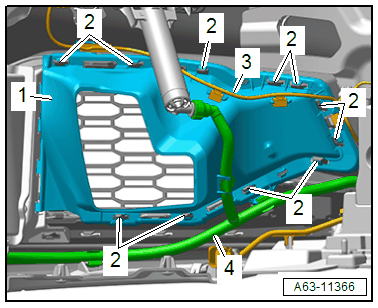

-- Free up the washer fluid hose -4- and wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -2-.

-- Remove the air intake grille trim -1-.

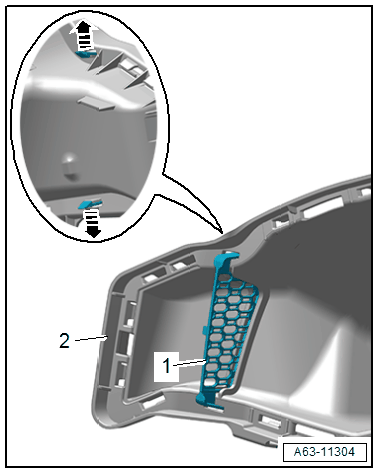

-- Release the retainers -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screen separator -1- from the air intake grille trim -2-.
