Air Intake Grille Trim, Removing And Installing, RS3 SPORTBACK: Removing
WARNING: This page is about a different variant/trim than selected.

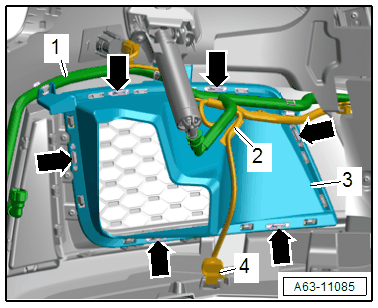

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Free up the washer fluid hose -1-.
-- Free up the connector -4- and wiring harness -2-.
-- Carefully remove the clips -arrows- carefully from the guide tab with a screwdriver.
-- Remove the air intake grille trim -3-.
