Automatic Dimming Function, Switching On And Off
WARNING: This page is about a different variant/trim than selected.
Vehicles through MY 2016:

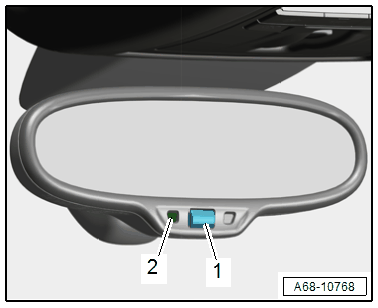

-- By briefly pressing the button -1- (less than three seconds), the automatic dimming function is switched on or off automatically.
Automatic dimming "ON" : the lamp in the display -2- comes on.
Automatic dimming "OFF" : the lamp in the display -2- goes out.
Vehicles from MY 2017:
-- By briefly pressing the button -2- (less than three seconds), the automatic dimming function is switched on or off automatically.
Automatic dimming "ON" : the lamp in the display -1- turns on.
Automatic dimming "OFF" : the lamp in the display -1- turns off.
Continuation for all Mirror Versions:
- Automatic dimming function is activated each time the "ignition is switched on".
- If the automatic dimming function is deactivated, the function is also deactivated on the exterior rearview mirror.
- In dimming mode, the mirror surface lights up when interior lights are switched on or reverse gear is engaged.
- The interior rearview mirror automatic dimming function can only work properly if the rear window shade is raised.
