Center Console, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

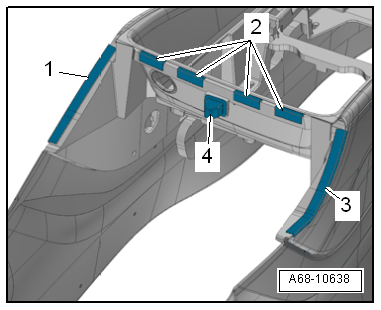

-- Pay attention that all felt strips -1, 2, and 3- on the side and above are seated correctly and that the cap -4- is pushed forward on the centering pins.
-- Set the center console in place and guide the connectors through the opening in the center console.
