Towing Recognition Control Module -J345-, Removing And Installing, Convertible: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the luggage compartment left trim panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

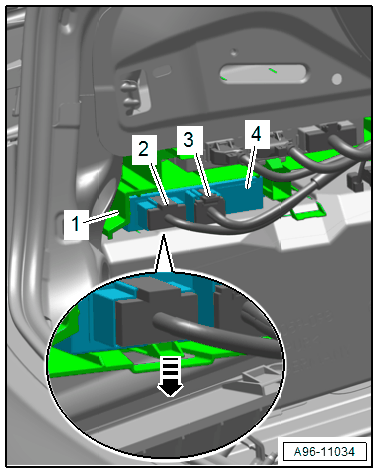

-- Disconnect the connectors -2 and 3-.
-- Release the tab -arrow- and remove the towing recognition control module -4- from the retaining frame -1-.
NOTE:
If the tab cannot be released, the hydraulic pump must be removed from the side compartment.
