Overview - Lane Change Assistance, Vehicles Through My 2016

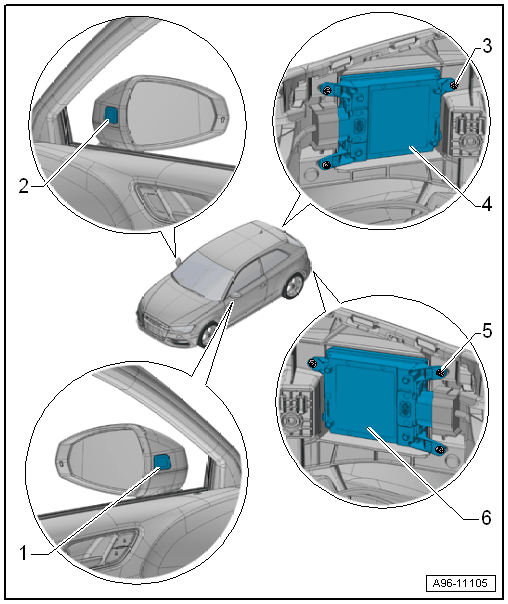

Fig 1: Locating Lane Change Assistance Warning Lamp & Modules

Courtesy of AUDI OF AMERICA, LLC

1. Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
   • Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER/FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
2. Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
   • Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER/FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
3. Bolt
   • 2 Nm
   • Quantity: 3
4. Lane Change Assistance Control Module -J769-
   • Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- /LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2016 .
   • Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
5. Bolt
   • 2 Nm
   • Quantity: 3
6. Lane Change Assistance Control Module 2 -J770-
   • Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- /LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770-, REMOVING AND INSTALLING, VEHICLES THROUGH MY 2016 .
   • Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
