Overview - Lane Change Assistance, Vehicles From My 2017

WARNING: This page is about a different variant/trim than selected.

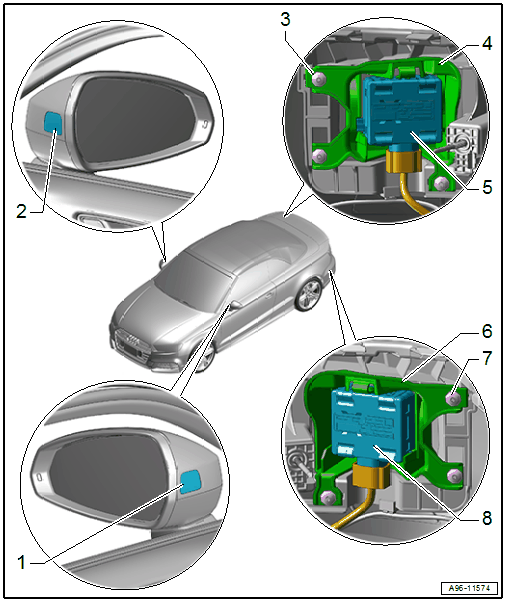

Fig 1: Locating Lane Change Assistance Warning Lamp & Modules

Courtesy of AUDI OF AMERICA, LLC

Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER/FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER/FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
Bolt
- 2 Nm
- Quantity: 3
Bracket
- There are different versions. Allocation. Refer to the Parts Information.
- For lane change assistance control module
Lane Change Assistance Control Module -J769-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- /LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770-, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
Bracket
- There are different versions. Allocation. Refer to the Parts Information.
- For lane change assistance control module
Bolt
- 2 Nm
- Quantity: 3
Lane Change Assistance Control Module 2 -J770-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULE -J769- /LANE CHANGE ASSISTANCE CONTROL MODULE 2 -J770-, REMOVING AND INSTALLING, VEHICLES FROM MY 2017 .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
