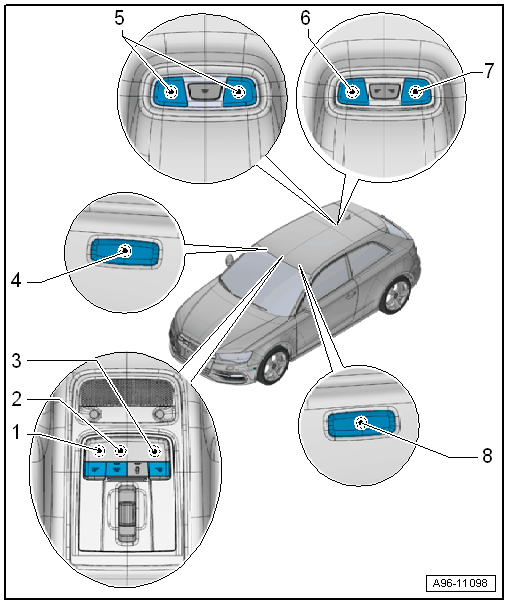

Overview - Roof Trim Panel Lamps
WARNING: This page is about a different variant/trim than selected.
- Driver Reading Lamp -W19-
- "Comfort" vehicle equipment version
- The front roof module must be replaced if one of the LEDs is faulty
- Front Interior Lamp -W1-
"Basis" vehicle equipment version
- 12V, 5W
- Bulb, Replacing. Refer to FRONT INTERIOR LAMP -W1-, REPLACING
"Comfort" vehicle equipment version
- The front roof module must be replaced if one of the LEDs is faulty
- Front Passenger Reading Lamp -W13-
- "Comfort" vehicle equipment version
- The front roof module must be replaced if one of the LEDs is faulty
- Front Passenger Vanity Mirror Lamp -W14-
- The vanity mirror illumination must be replaced if one of the LEDs is faulty
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Rear Interior Lamp -W43-
- "Basis" vehicle equipment version
- Removing and installing. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .
- Left Rear Reading Lamp -W11-
- "Comfort" vehicle equipment version
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Right Rear Reading Lamp -W12-
- "Comfort" vehicle equipment version
- The rear interior lamp must be replaced if one of the LEDs is faulty
- Driver Vanity Mirror Lamp -W20-
- The vanity mirror illumination must be replaced if one of the LEDs is faulty
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Front Passenger Vanity Mirror Lamp -W14-
- There are different versions. Refer to the Parts Information
- 12 V/6 W
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Driver Reading Lamp -W19-
- The front roof module must be replaced if one of the LEDs is faulty
- Front Passenger Reading Lamp -W13-
- The front roof module must be replaced if one of the LEDs is faulty
- Driver Vanity Mirror Lamp -W20-
- There are different versions. Refer to the Parts Information
- 12 V/6 W
- Removing and installing. Refer to DRIVER/FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
