Overview - Luggage Compartment Lamps

WARNING: This page is about a different variant/trim than selected.

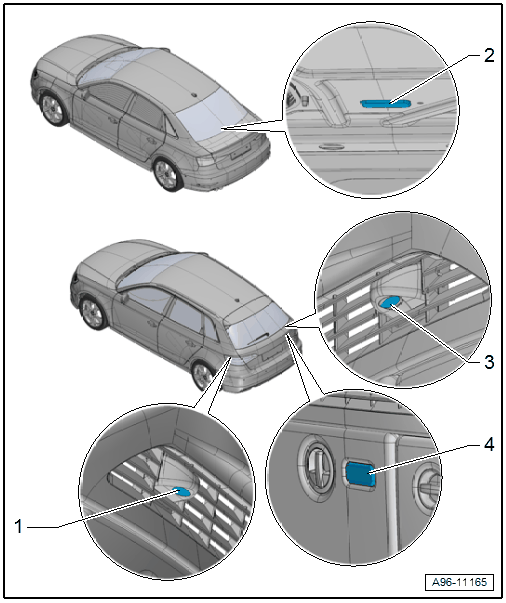

Fig 1: Locating Luggage Compartment Lamps

Courtesy of AUDI OF AMERICA, LLC

Left Luggage Compartment Lamp -W18-
- Only e-tron®
- The luggage compartment lamp must be replaced if one of the LEDs is faulty
- Removing and installing. Refer to LEFT/RIGHT LUGGAGE COMPARTMENT LAMP -W18- / -W35-, REMOVING AND INSTALLING .
Luggage Compartment Lamp -W3-
- Sedan only
- Without LED:12 V, 5 W
- Removing and Installing. Refer to LUGGAGE COMPARTMENT LAMP -W3-, REMOVING AND INSTALLING .
- The luggage compartment lamp must be replaced if one of the LEDs is faulty
Right Luggage Compartment Lamp -W35-
- Only e-tron®
- The luggage compartment lamp must be replaced if one of the LEDs is faulty
- Removing and installing. Refer to LEFT/RIGHT LUGGAGE COMPARTMENT LAMP -W18- / -W35-, REMOVING AND INSTALLING .
Right Luggage Compartment Lamp -W35-
- Only Convertible
- There are different versions. Refer to the Parts Information
- In the right luggage compartment side trim panel
- 12 V, 5 W
- Removing and installing. Refer to LUGGAGE COMPARTMENT LAMP, REMOVING AND INSTALLING .
