Left/Right Luggage Compartment Lamp -W18- / -W35-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove The Luggage Compartment Trim Panel. Refer to OVERVIEW - LUGGAGE COMPARTMENT SIDE TRIM PANEL / LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

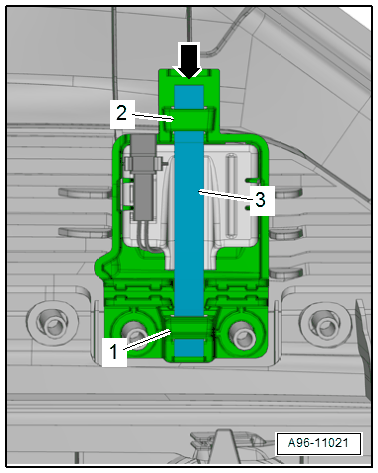

-- Slightly lift the upper metal rail -3- -arrow- and remove from the guides -1 and 2-.

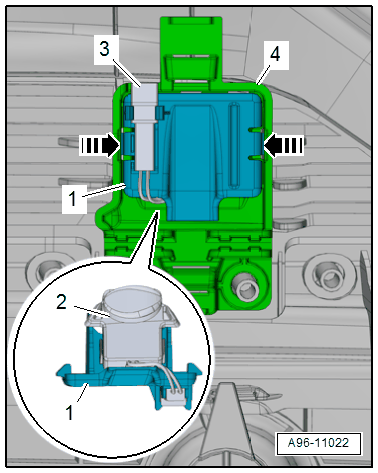

-- Release the retaining tabs in direction of -arrows- and remove the cover -4-.
-- Remove the luggage compartment lamp -2- from the mount -1- and free up the connector -3-.
