Left/Right Rear Reading Lamp -W11- / -W12-, Replacing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the rear interior/reading lamp. Refer to REAR INTERIOR/READING LAMP, REMOVING AND INSTALLING .

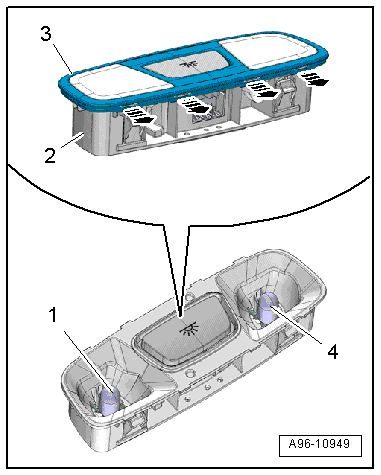

-- Carefully release the retaining tabs in direction of -arrow- and remove the interior lamp lens -3-.

GWWA96-10949Courtesy of AUDI OF AMERICA, LLC

-- Remove bulb -1 and 4- from socket -2-.
