Left/Right FOOTWELL Lamp -W9- / -W10-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Driver side: Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Front passenger side: Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

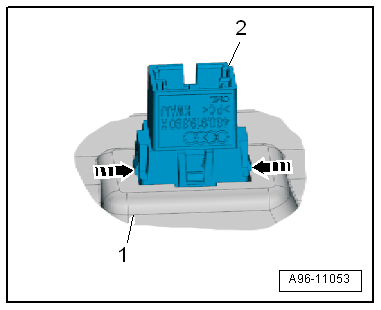

-- Release the retaining clips in direction of -arrows-.
-- Press the footwell lamp -2- out of the driver side instrument panel cover -1-.
