Left Instrument Panel Ambient Lighting Lamp -L229-, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .
-- Remove the connector clip -1- for the ambient lighting lamp.
-- Disconnect the connector -2- for the ambient lighting lamp.
-- Remove The Instrument Panel Trim. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .

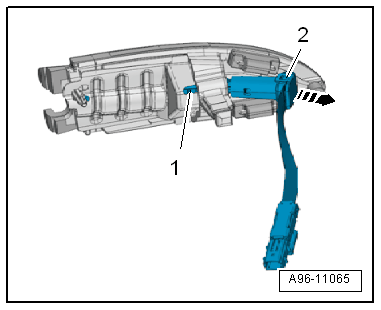

-- Remove the lamp -2- from the lighting strip -1- in direction of -arrow-.
