Glove Compartment Lamp -W6-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Turn the light switch to position "0".

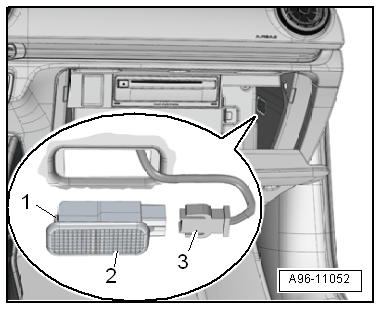

-- Press in the tab -1- using a flat-head screwdriver and pry out the glove compartment lamp -2-.

GWWA96-11052Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.
