Driver/Front Passenger Door Warning Lamp -W30- / -W36-, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Press the tab -1- with a flat-blade screwdriver and remove the door warning lamp -2-.

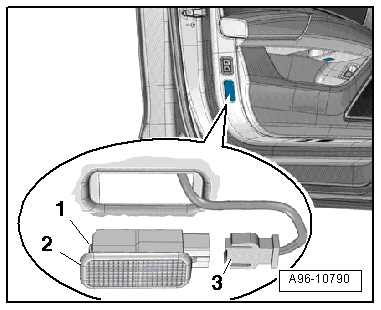

Fig 1: Pressing Tab -1- With A Flat-Blade Screwdriver And Remove Door Warning Lamp -2-
GWWA96-10790Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Carefully pry out the cover over the lamp in direction of -arrow-.

Fig 2: Prying Off Cover On Door Safety Lamp
GWWA96-0481Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb -1- from the socket -2- on the back of the door warning lamp.

Fig 3: Door Safety Light/Entry Light Bulb
GWWA96-0599Courtesy of AUDI OF AMERICA, LLC
